Edge Banding Machine for Woodworking Mini Auto Curve and Straight Line Dual-Purpose

Name: Edge Banding Machine for Woodworking Mini Auto Curve and Straight Line DualPurpose
Brand: Phoenix
Price: 450.00 USD

Wholesale Edge Banding Machine for Woodworking Mini Auto Curve and Straight Line Dual-Purpose from china suppliers

Place of Origin : Shandong, China

Brand Name : Phoenix

Condition : New

Machine Type : Edge Banding Machine

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2022

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Warranty : 1 Year

Weight (KG) : 50 KG

Power (kW) : 1.2

Key Selling Points : High Productivity

Showroom Location : United Kingdom, United States, Italy, France, Germany

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other

Type : Curve and straight line dual-purpose

Packaging Details : 1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port
Qingdao port

Port : We can package according to your requests Port Qingdao port

Supply Ability : 500 Acre/Acres per Month

Price : $450.00/acres 1-4 acres

MOQ : 1 set

Contact Now

mini auto curve straight Wood based panels machinery price woodworking glue sealing edge banding machine

Edge Banding Machine for Woodworking Mini Auto Curve and Straight Line Dual-Purpose

_Model	_MD01	_MD02	_MD03	_MD04	_MY07
_{Max banding Thickness}	_0.3~3.0mm	_0.3~3.0mm	_0.3~3.0mm	_0.3~3.0mm	_0.3~3.0mm
_{Max banding Height}	_10~45mm	_10~45mm	_10~45mm	_10~45mm	_10~45mm
_{Working pressure}	_{3~6kg/cm square}	_{3~6kg/cm square}	_{3~6kg/cm square}	_{3~6kg/cm square}	_{3~6kg/cm square}
_{Working Temperature}	_{130~180 degree}	_{130~180 degree}	_{130~180 degree}	_{130~180 degree}	_{130~180 degree}
_Speeding	_0~5m/min	_0~5m/min	_0~5m/min	_0~5m/min	_0~5m/min
_{Glue Pot}	_1000ml	_1000ml	_1000ml	_1000ml	_1000ml
_{Type way}	_{double glue cover}	_{double glue cover}	_{double glue cover}	_{double glue cover}	_{double glue cover}
_{Trimming/Buffing power}	_1200W/NO	_1300W/1300W	_1300W1300W	_1300W1300W	_1300W1300W
_{Total power}	_1200W	_3000W	_3600W	_3600W	_3600W
_Voltage	_110V/220V	110V/220V	110V/220V	110V/220V	110V/220V
_{Overall dimensions}	_62x45x50cm	_92×50×50cm	_{100×50×50cm}	_{100×50×50cm}	_{100×50×50cm}
_Weight	_50kg	_65kg	_80kg	_85kg	_90kg
_{Edge banding}	_{straight and curve}	_{straight and curve}	_straight	_{straight and curve}	_{straight and curve}
_{Trimming&Buffing}	_straight	_straight	_straight	_straight	_straight
_{Operation way}	automatic	automatic	_automatic	_automatic	_automatic
_Funtions	_{gluing,trimming,pneumatic}	_{gluing,trimming,buffing pneumatic end cutting}	_{gluing,trimming,buffing pneumatic end cutting}	_{gluing,trimming,buffing pneumatic end cutting}	_{gluing,trimming,buffing, end cutting}

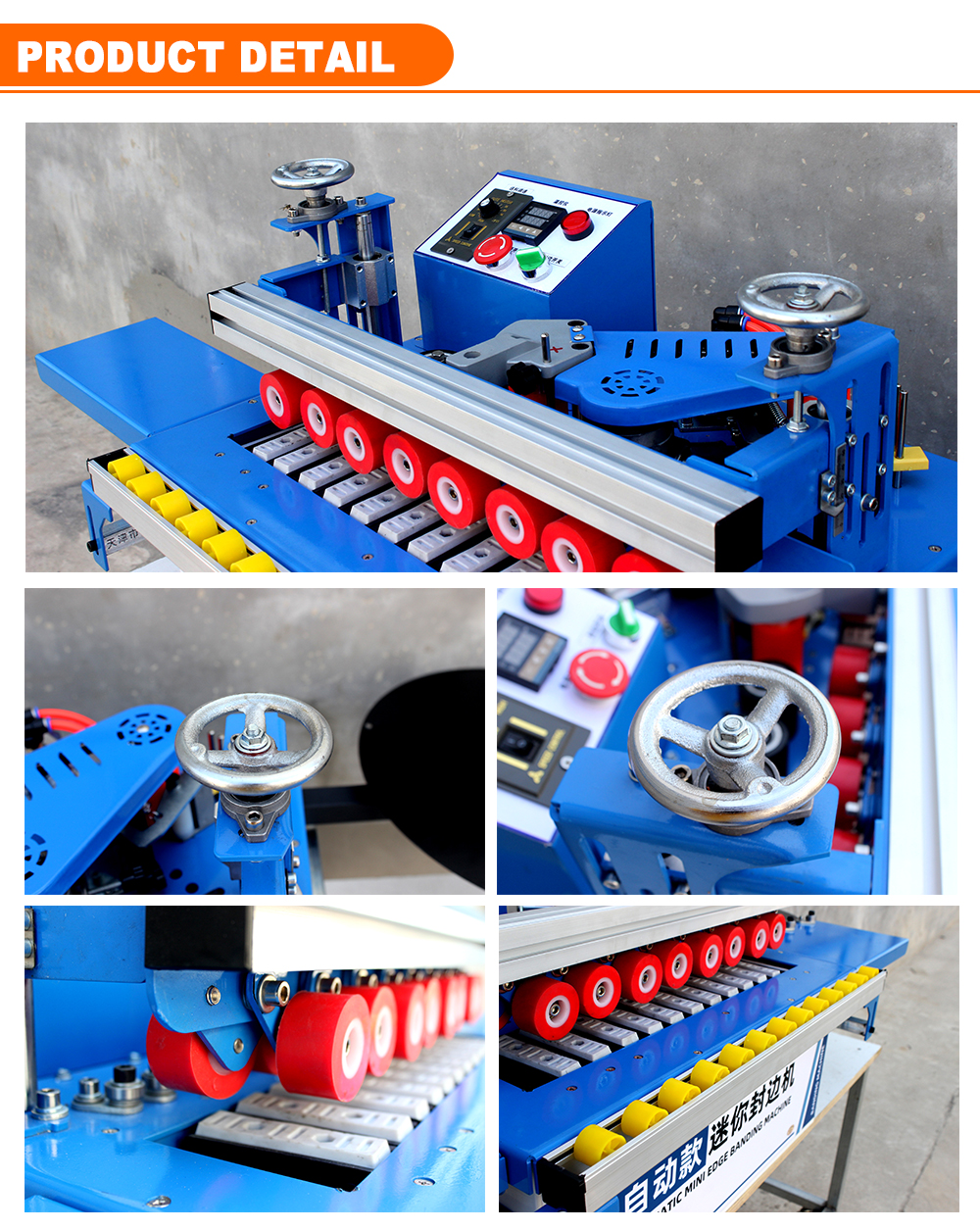

Edge Banding Machine for Woodworking Mini Auto Curve and Straight Line Dual-Purpose Images
