3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving

Name: 3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving
Brand: Phoenix Equipment
Price: 2 USD

Wholesale 3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving from china suppliers

Condition : New

Range of Spindle Speed(r.p.m) : 0 - 24000 rpm

Positioning Accuracy (mm) : 0.02 mm

Number of Axes : 3

No. of Spindles : Single

Working Table Size(mm) : 1300*2500mm

Machine Type : CNC Router

Travel (X Axis)(mm) : 1300 mm

Travel (Y Axis)(mm) : 2500 mm

Repeatability (X/Y/Z) (mm) : 0.02 mm

Spindle Motor Power(kW) : 3.2kw

CNC or Not : CNC

Place of Origin : Shandong, China

Brand Name : Phoenix Equipment

Voltage : AC380V220V50Hz

Dimension(L*W*H) : 3200x1700x960mm

Weight (KG) : 1000

Control System Brand : Syntec

Warranty : 1 Year

Key Selling Points : Multifunctional

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

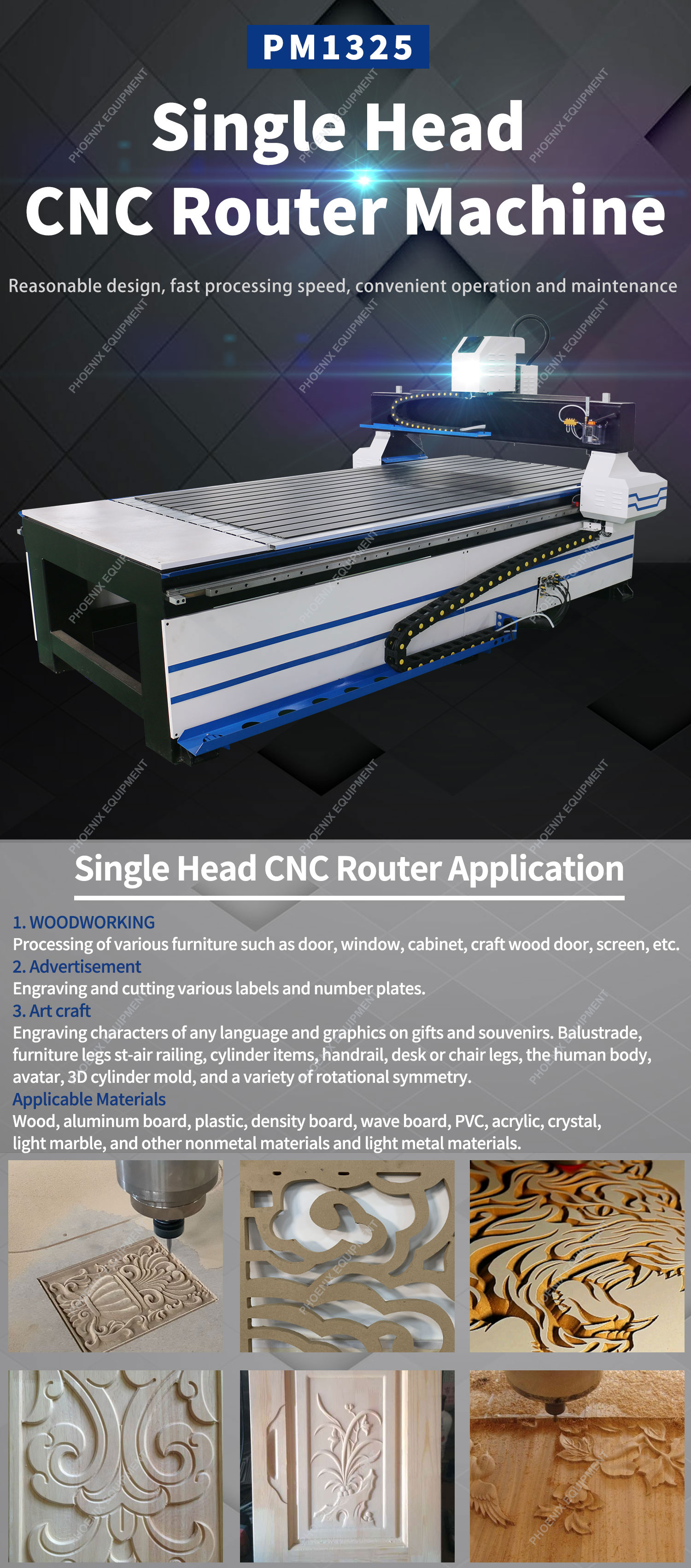

Name : Single Head CNC Router Machine

Product name : CNC Wood Working Machine

Application : Kitchen Cabinet Doors Furnitures Making

Keywords : Cnc Wood Router Engraver

Work area : 1300*2500*200mm

Motor : Leadshine 860 step motor

Operating system : NC studio

Support software : Type 3,Artcam,JD,

Bed Material : Welded large steel pipe

Table Surface : T-slot table

Price : $2,850.00/sets 1-2 sets

MOQ : 1 set

Contact Now

3200x1700x960mm Single Spindle PM1325 3D CNC Router Machine for Wood Cutting Engraving

Products Description

Specification

Model			PM1325
Bed Material			Welded large steel pipe
weight			1000KGS
Table size			1300*2500mm
Work area			13002500200mm
Table Surface			T-slot table
Engraving accuracy			0.02-0.03mm
Repeatability			±0.01mm

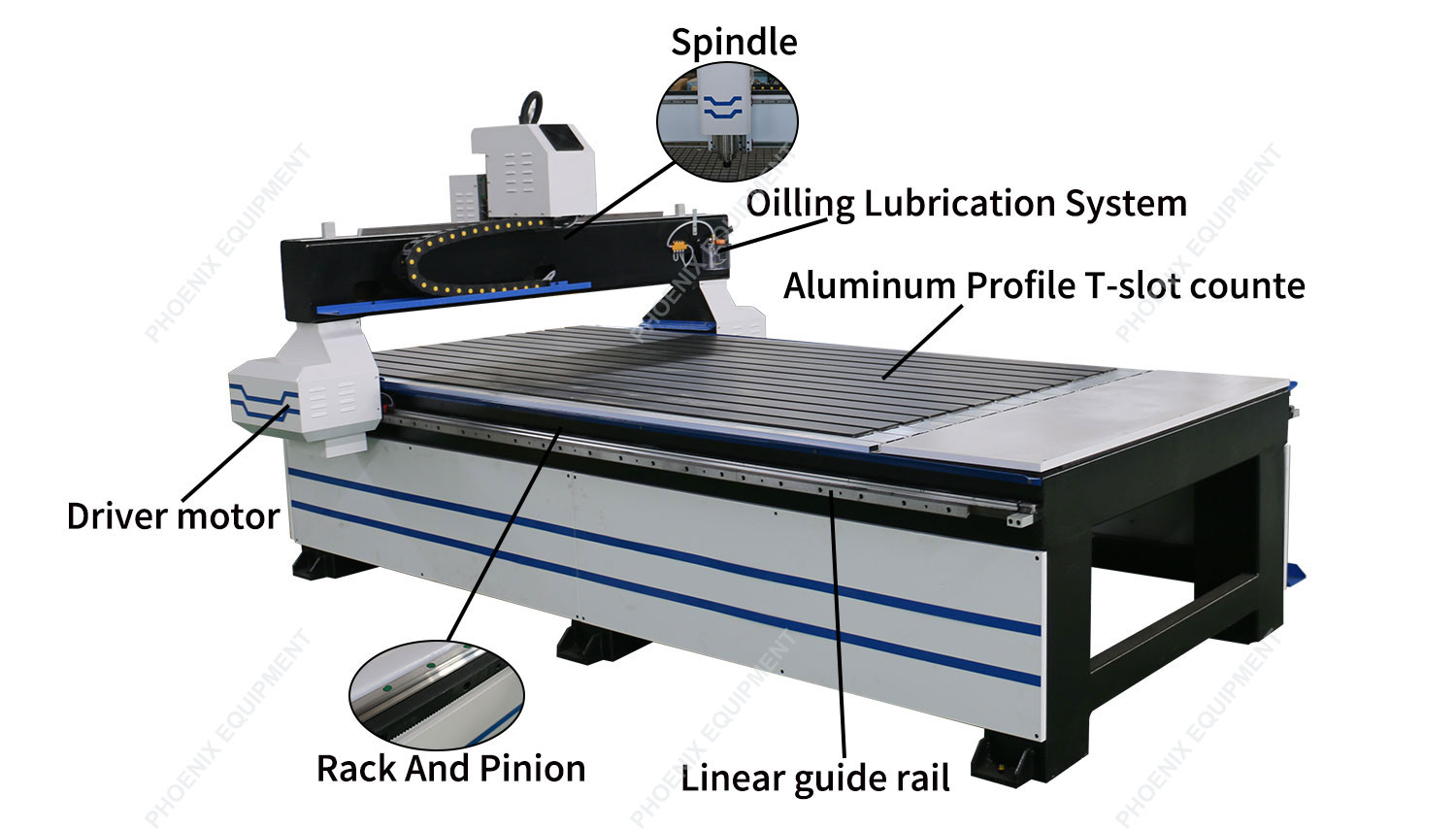

XYZ transmission			XY helical rack drive, Z screw drive
Guide			HIWIN20 square rail
Working speed			18000mm/min
Spindle power			JST 3.2KW water cooling
Frequency converter			3.7KW FULING
Spindle speed			0-24000rmp
Motor			Leadshine 860 step motor
Operating Voltage			AC380V220V50Hz
Oil System			Manal oil system
Run command			G code
Operating system			NC studio
Support software			Type 3,Artcam,JD,
Packing size			3200x1700x960mm

Packing Delivery

1. Outside package: Standard marine export plywood cases.

2. Inner package: Stretch film and plastic film for humidity.

We can package according to your requests

Product Name	3D CNC Router Machine for Wood Cutting Engraving woodworking industry
Brand	PHOENIX EQUIPMENT

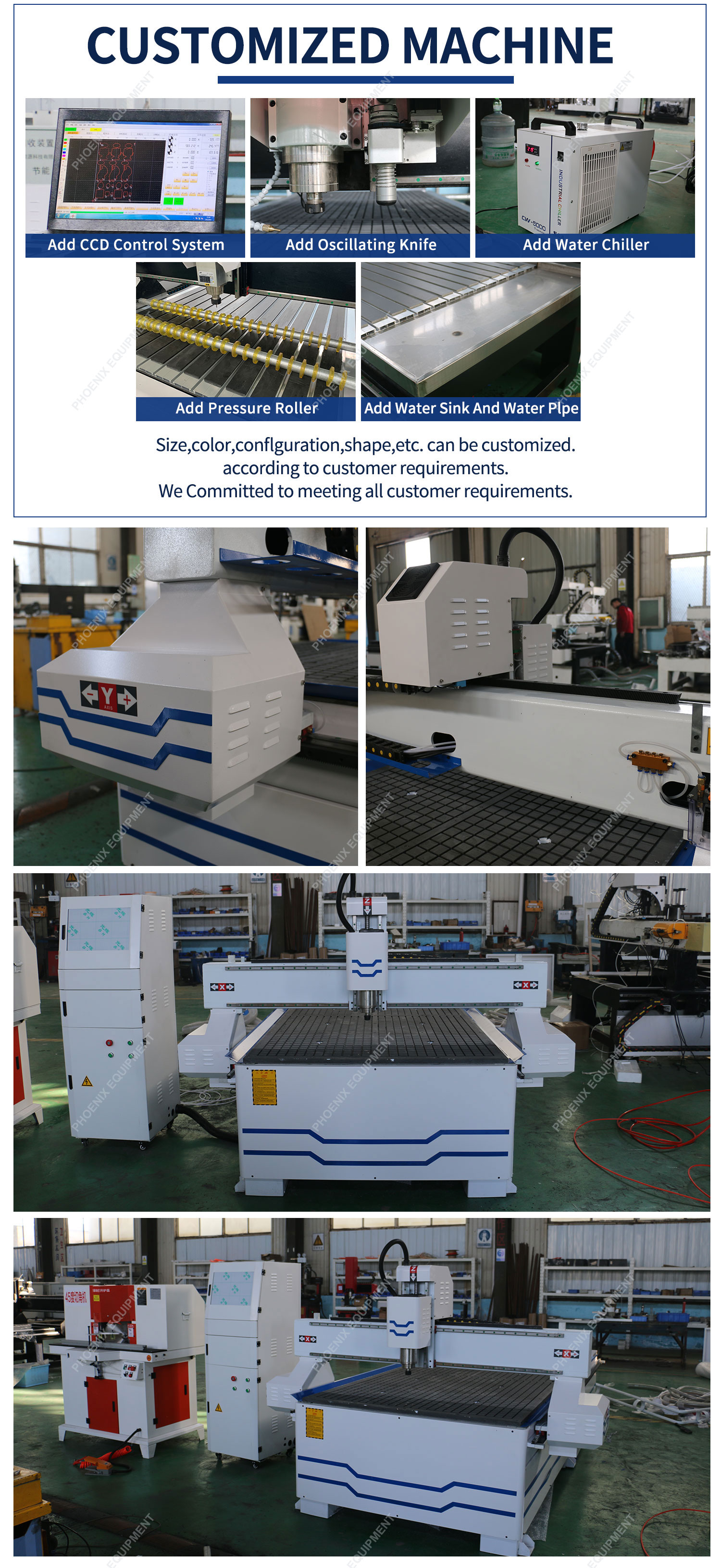

Customized	color, logo, voltage
MOQ	1 set
Package	plywood wooden box
Payment terms	Alibaba Trade Assurance, T/T, Alipay
Usage	Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials.
